IS 2062 / IS 1079 / IS 513
Prime certified material with authentic Mill Test Certificates (EN 10204 3.1).
0.5mm to 20mm Ready Stock
Massive inventory of HR Coils, CR Coils, and Pickled & Oiled Coils in Raipur.

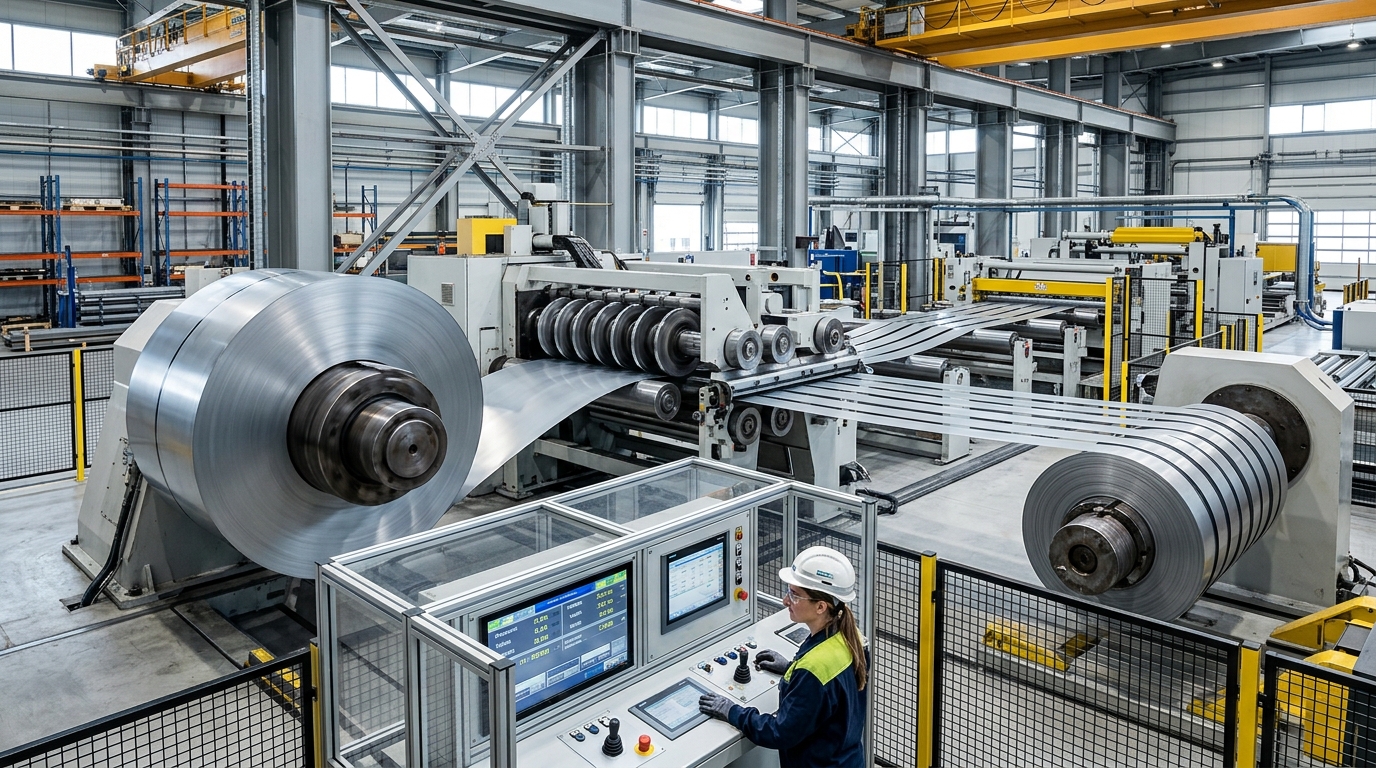

In-House Precision Slitting
High precision rotary slitting for pipe mills, stamping, and roll forming.

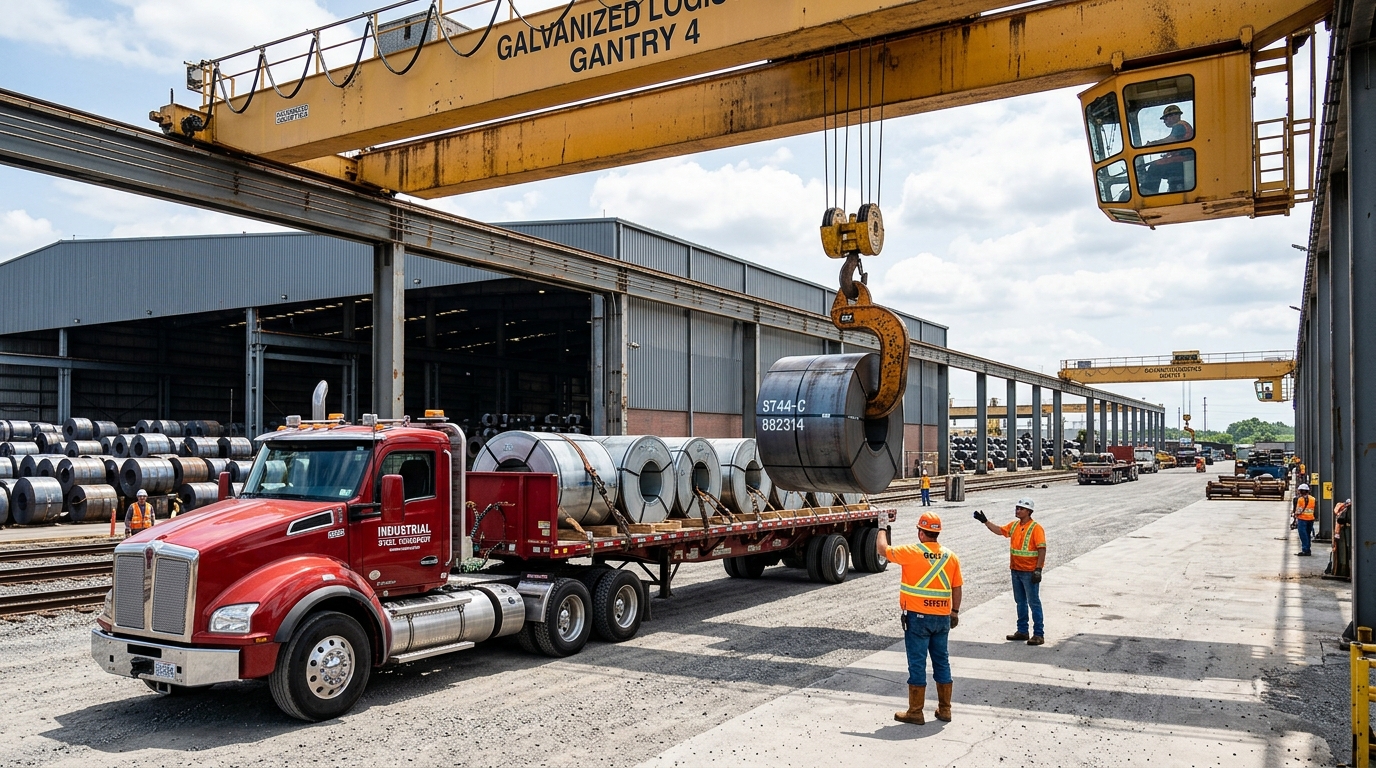

PAN-India Dispatch
Prompt multi-axle freight loading with electronic weighbridge verification.
Interactive MS Coil & Strip Weight Calculator
Calculate running weights in kg/meter, total batch weights, and surface areas using standard mild steel density (7.85 g/cm³).
MS Coil Thickness, Width & Weight Specification Table
Comprehensive weight chart per square meter and running weights per meter for standard widths (1250mm & 1500mm) for prime MS Coils.
Mild Steel (MS) Coils Weight Chart
IS 2062 / IS 1079 / IS 513| Coil Thickness | Weight (Kg / m²) | Running Wt. @ 1250mm | Running Wt. @ 1500mm | Standard Grade | Typical Industrial Applications | Instant Quote |
|---|---|---|---|---|---|---|
| 0.50 mm (CR) | 3.93 kg | 4.91 kg/m | 5.89 kg/m | IS 513 CR1 / CR2 / D | Automotive Panels, Home Appliances, Precision Tubes, Electrical Enclosures | |
| 0.60 mm (CR) | 4.71 kg | 5.89 kg/m | 7.07 kg/m | IS 513 CR1 / D / DD | Auto Body Parts, Ducting, Sheet Metal Stamping, Metal Furniture | |
| 0.80 mm (CR) | 6.28 kg | 7.85 kg/m | 9.42 kg/m | IS 513 CR1 / D / DD | Control Panels, Drum Fabrication, Auto Components, Shelving | |
| 1.00 mm (CR/HR) | 7.85 kg | 9.81 kg/m | 11.78 kg/m | IS 513 / IS 1079 HR1 | ERW Pipes, Cable Trays, Steel Doors, Exhaust Pipes, Stampings | |
| 1.20 mm (HR/CR) | 9.42 kg | 11.78 kg/m | 14.13 kg/m | IS 1079 HR1 / IS 2062 | Scaffolding Tubes, Furniture Tubes, Agricultural Equipment | |
| 1.60 mm (HR) | 12.56 kg | 15.70 kg/m | 18.84 kg/m | IS 1079 HR2 / IS 2062 E250 | Structural Tubing, Auto Brackets, Purlins, Container Panels | |
| 2.00 mm (HR) | 15.70 kg | 19.63 kg/m | 23.55 kg/m | IS 2062 E250 / IS 1079 | PEB C/Z Purlins, ERW Steel Pipes, Auto Chassis, Cable Trays | |
| 2.50 mm (HR) | 19.63 kg | 24.53 kg/m | 29.44 kg/m | IS 2062 E250 / E350 | Heavy Tubes, Solar Mounting Structures, Fuel Tanks, Silos | |
| 3.00 mm (HR) | 23.55 kg | 29.44 kg/m | 35.33 kg/m | IS 2062 E250 / E350 | Water Pipeline Casing, Truck Cargo Beds, Railway Wagons | |
| 3.50 mm (HR) | 27.48 kg | 34.34 kg/m | 41.21 kg/m | IS 2062 E250 / E350 | PEB Frame Stiffeners, Heavy Slit Strips, Machine Chassis | |
| 4.00 mm (HR) | 31.40 kg | 39.25 kg/m | 47.10 kg/m | IS 2062 E250 / E350 | Large Diameter ERW Pipes, Storage Tanks, Transmission Poles | |
| 4.50 mm (HR) | 35.33 kg | 44.16 kg/m | 52.99 kg/m | IS 2062 E250 / E350 | Heavy Engineering, Flanges, Pipe Couplings, Industrial Hoppers | |
| 5.00 mm (HR) | 39.25 kg | 49.06 kg/m | 58.88 kg/m | IS 2062 E250 / E350 | Structural Sections, Slit Strips for Welded Beams, Earthmovers | |
| 6.00 mm (HR) | 47.10 kg | 58.88 kg/m | 70.65 kg/m | IS 2062 E250 / E350 / A36 | Heavy Structural Tubing, Bridge Components, Industrial Flooring | |
| 8.00 mm (HR) | 62.80 kg | 78.50 kg/m | 94.20 kg/m | IS 2062 E250 / E350 | Pressure Vessel Shells, Spiral Pipes, Gantry Beams, Rail Coaches | |
| 10.00 mm (HR) | 78.50 kg | 98.13 kg/m | 117.75 kg/m | IS 2062 E250 / E350 | Heavy Welded Columns, Slit Flange Strips, Crane Booms | |
| 12.00 mm (HR) | 94.20 kg | 117.75 kg/m | 141.30 kg/m | IS 2062 E250 / E350 / BQ | Wind Towers, Heavy Boiler Casings, Earthmoving Excavator Frames | |
| 14.00 mm (HR) | 109.90 kg | 137.38 kg/m | 164.85 kg/m | IS 2062 E250 / E350 | Heavy Slit Coils, Mining Chutes, Large Cylindrical Shells | |
| 16.00 mm (HR) | 125.60 kg | 157.00 kg/m | 188.40 kg/m | IS 2062 E250 / E350 / BQ | Hydro Penstocks, Offshore Structural Tubulars, Heavy Machinery | |
| 20.00 mm (HR) | 157.00 kg | 196.25 kg/m | 235.50 kg/m | IS 2062 E250 / E350 | Heavy Built-up Girders, Foundation Rings, Turbine Casings | |
| Chequered 3.0 mm | 26.50 kg | 33.13 kg/m | 39.75 kg/m | IS 2062 Chequered (Tear Drop) | Anti-Skid Walkways, Plant Platforms, Truck Flooring, Catwalks | |
| Chequered 4.0 mm | 34.35 kg | 42.94 kg/m | 51.53 kg/m | IS 2062 Chequered (Tear Drop) | Industrial Catwalks, Weighbridge Decks, Stair Treads | |
| Chequered 5.0 mm | 42.20 kg | 52.75 kg/m | 63.30 kg/m | IS 2062 Chequered (Tear Drop) | Heavy Traffic Walkways, Marine Decks, Power Plant Decks | |
| Chequered 6.0 mm | 50.05 kg | 62.56 kg/m | 75.08 kg/m | IS 2062 Chequered (Tear Drop) | Heavy Industrial Trench Covers, Heavy Equipment Flooring | |
| HRPO 2.0 - 4.0 mm | Varies | Custom | Custom | Pickled & Oiled (Scale Free) | Automotive Chassis, Precision Laser Cutting, Fine Stamping |
Comprehensive Guide to Mild Steel (MS) Coils
Mild Steel Coils (MS Coils) are continuous sheets of low-carbon structural steel wound into compact rolls after high-temperature hot rolling or room-temperature cold rolling. Mild steel offers an optimum balance of tensile strength, high ductility, notch toughness, and exceptional weldability, making it the bedrock material for global manufacturing, infrastructure, and heavy fabrication.
At Mscoil.com, we are premier stockists, distributors, and exporters of prime Hot Rolled (HR) MS Coils (IS 2062 Grade E250 / E350, IS 1079) and Cold Rolled (CR) MS Coils (IS 513 CR1/CR2/D/DD/EDD). Available across thicknesses from 0.50 mm thin gauges up to 20.0 mm heavy structural gauges, our inventory is backed by complete Mill Test Certificates (EN 10204 Type 3.1) from India's premier integrated steelmakers: SAIL, TATA Steel, JSW Steel, AM/NS India, and Jindal.
ERW Pipes & Hollow Sections
Continuous strip uncoiling and high-frequency induction welding into round, square, and rectangular ERW structural pipes.
Automotive & Deep Stamping
Fabrication of vehicle chassis members, fuel tanks, body brackets, precision pressings, and deep drawn components.
PEB Purlins & Metal Decking
Roll-forming of high tensile C-purlins, Z-purlins, floor decking profiles, and roofing elements for pre-engineered steel buildings.
Custom Slit Strips & Narrow Coils
High-precision rotary shear slitting down to customer specifications for automatic stamping and tube fabrication lines.
MS Coil Theoretical Weight Calculation Formula
The theoretical weight of any mild steel strip or uncoiled sheet is calculated using the standard density constant of 7.85 g/cm³ (7,850 kg/m³).
Practical Example: To calculate the weight of an uncoiled 2.5 mm thick MS HR coil with a strip width of 1.25 meters (1250 mm) and length of 200 meters:
Weight = 200 × 1.25 × 2.5 × 7.85 = 4,906.25 kg (4.91 Metric Tons)
Wound Coil Weight Formula (by Diameters):
Weight (kg) = (π / 4) × [OD² - ID²] × Width × 0.00000785 (Dimensions in mm)
All consignments dispatched from our Raipur stockyard are weighed on calibrated computer weighbridges to provide 100% transparent and certified invoicing.
Frequently Asked Questions
Key technical, processing, testing, and commercial answers regarding Mild Steel (MS) Coils.
Hot Rolled (HR) MS Coils are manufactured by rolling steel slabs at high temperatures (above 1,000°C). They feature superior ductile malleability, high yield strength, and a characteristic mill scale surface, making them ideal for ERW pipes, heavy structural fabrication, PEB purlins, and tanks. Cold Rolled (CR) MS Coils are produced by further cold reduction of pickled HR coils at room temperature, yielding exceptionally tight thickness tolerances, smooth mirror-like surfaces, and superior deep-drawing capability suited for automotive skins, white goods, and precision stampings.
Standard master coil inner diameters (ID) are 508 mm (20 inches) or 610 mm (24 inches) / 762 mm. Standard mill widths available in stock are 900mm, 1000mm, 1250mm, 1500mm, 1800mm, and 2000mm. Through our in-house rotary slitting lines, we also supply slit strip coils in custom widths down to 20 mm.
Yes, we specialize in supplying precision slitted coils directly matching your pipe mill uncoiler requirements. Our automated slitting lines ensure burr-free edges, uniform width tolerances (+/- 0.2mm), and secure eye-to-sky or eye-to-wall strapping on wooden pallets for safe uncoiling.
We supply prime Mild Steel Coils directly sourced from India's tier-1 integrated primary mills: SAIL (Steel Authority of India Limited), TATA Steel, JSW Steel, AM/NS India (ArcelorMittal Nippon Steel), and Jindal Steel, backed by manufacturer test certificates.
Yes, 100% of our prime dispatches include genuine Mill Test Certificates conforming to EN 10204 Type 3.1. These test reports state heat number, chemical composition (%C, %Mn, %Si, %S, %P) and mechanical properties (yield strength, ultimate tensile strength, elongation %).
You can directly contact our central sales team at +91 9009272007 / 0771-4007433, submit an online quotation inquiry through this website, or email your requirements to jmdtradingco.99@gmail.com for an immediate rate sheet with logistics support.
